SOLAR SOLUTION

Advancing products, processes and solutions

With winter on its way we have the unpredictable loadshedding schedule looming over us, but fear not, there is a greener alternative out there.

The mini grid solutions will combine diesel power and/or storage with renewable power sources.

What you need to know about solar systems!

Powering your home shouldn’t cost the earth in more ways than one. Solar is a renewable and clean source of energy that reduces both your carbon footprint and your power bill at the same time.

We build our systems with flexibility and ease of use in mind, regardless of home size, position or existing PV array. We have a system or battery to work for every home

Designed and engineered for the harshest weather conditions and climate, our batteries and inverters are built to the highest standards, without compromise on safety, durability, components or technology.

Our systems can be positioned indoors and can be remotely monitored or on the front of the unit itself . You’ll always be in control of your systems performance and see exactly when you’re generating, storing or using your power.

Energy prices are rising rapidly and although we can’t predict the future, we understand that investing in affordable, renewable technology, is the easiest way to protect your household from rising costs, whilst ‘doing your bit’ for the environment.

GESS are Suppliers and innovators of the most advanced energy storage solutions relevant for today and the future.

With beautifully designed, flexible system configurations, and expandable storage to suit your lifestyle,

We’ve been developing our systems and technology since 2016.
Partnering with installers, energy companies and home builders, to integrate Solar Battery storage to homes throughout the world.

Adding our in-depth expertise to deliver power projects using engineer-procure-construct (EPC), design-build, design-assist, and traditional bid-build models, providing a complete array of subcontracting services for major power projects that set industry standards for quality design and superior function worldwide.

Hubble Lithium AM-2 Battery Warranty

The AM-2 has a 15 year intended design life, however Hubble Lithium (pty) ltd warranty’s that the battery should achieve at least 10 years’ service life or deliver at least 3000 charge, discharge cycles at 90% depth of discharge, which ever event is achieved first.
This warranty covers the Hubble Lithium AM-2 51V 5.5KWh wall mount lithium series of batteries, which is backed by Hubble Lithium (Pty) ltd.

  • Overload/over-temperature/short-circuit protection.
  • Smart battery charger design for optimised battery protection
  • Isolation transformer design

For more information & pricing contact us.

Three-Phase Hybrid Inverter

INTERACTIVE
Easy and simple to understand LCD display
Supporting Wi-Fi or GSM monitoring
Visual power flow screen
Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker
Smart settable 3-stage MPPT charging for optimised battery performance
Auxiliary load function;
Parallel (coming soon) / multi-inverter function: grid-tied and off-grid

COMPATIBLE
Compatible with mains electrical grid voltages or power generators;
Compatible with wind turbines;
230V/400V Three-phase Pure Sinewave Inverter;
Self-consumption and feed-in to the grid;
Auto restart while AC is recovering;
Maximum charging/discharging current of 190A (8kW), 210A (10kW), and 240A (12kW);
DC and AC couple to retrofit existing solar system
Compatible with a 48V low-voltage battery

CONFIGURABLE
Fully programmable controller;
Programmable supply priority for battery or grid;
Programmable multiple operation modes: on-grid/off-grid & UPS;
Configurable battery charging – current/voltage based on applications by LCD setting;
Configurable AC / solar / generator charger priority by LCD setting;
6 time periods for battery charging/discharging;

APPLICATIONS
Marine (vessel power management);
Power shedding (home/office/factory);
UPS (fuel-saving systems);
Remote locations with solar and wind generators;
Building sites;
Telecommunication

For more information & pricing contact us.

Three-Phase Hybrid Inverter Continued

The following diagram explains the basic application and architecture of this 3-Phase Inverter.
The system is composed of solar panels, batteries, a generator or utility grid, normal loads, smart loads and monitoring systems.

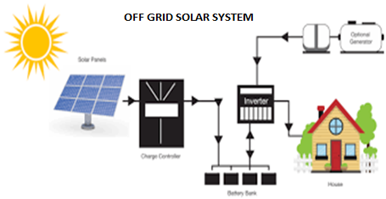

OFF GRID SOLAR SYSTEM

Off-grid means you are not connected in any way to your grid’s power system or utility company.

This is appealing because you are 100% self-sustaining your energy use.

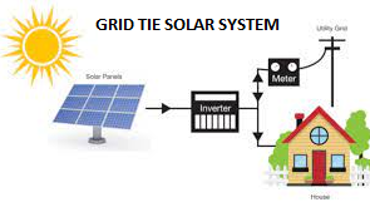

GRID TIE SOLAR SYSTEM

Less Shading and Grid tied systems consist of only 2 key components:

Solar panels and a dedicated grid tied inverter.

All the electric power generated by the solar panels feeds through a mains synchronized inverter directly into your distribution board and offsets the power you would normally consume from your provider, lower resistive Loss

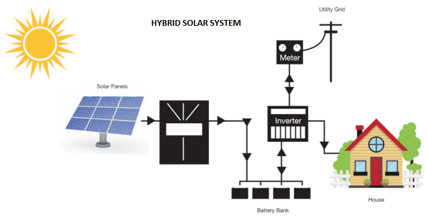

HYBRID SOLAR SYSTEM

The hybrid solar energy system is a combination of On-Grid and Off-Grid based solar energy systems.

In simple terms, one can define it as a grid connected solar power system with a battery backup added. … Also, one can sell the surplus energy generated to the local grid-connection and get paid for the same
